5787170-7 TE Connectivity | PCBX Electronics

5787170-7

Manufacturer:

TE Connectivity

Mfr.Part #:

5787170-7

Datasheet:

Description:

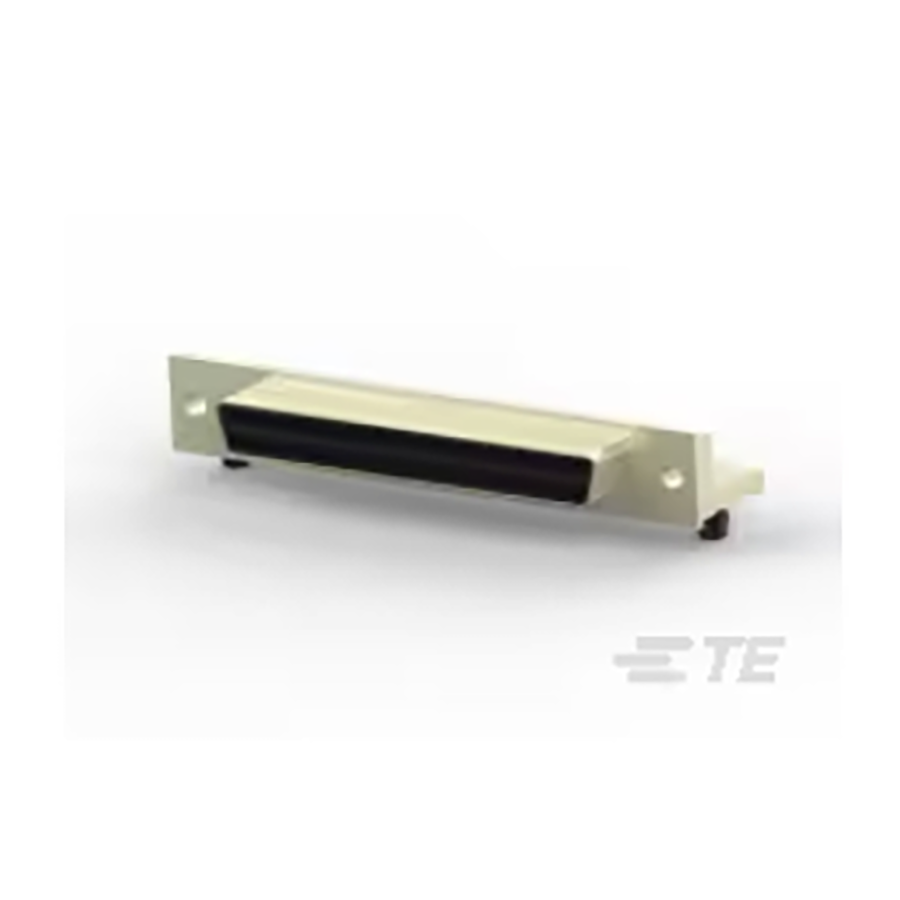

D-Sub Connectors Through Hole Receptacle, Female Sockets Number of Positions:68 Solder Female

Parameter	Value
Length	63.88 mm
Width	10.31 mm
Termination	Solder
Max Operating Temperature	105 °C
Min Operating Temperature	-55 °C
Number of Pins	68
Height	10.31 mm
Material	Thermoplastic
Packaging	Tube
Voltage Rating	30 V
Depth	16.76 mm
Lead Free	Lead Free
RoHS	Compliant
REACH SVHC	Unknown
Contact Plating	Gold
Features	Shielded
Lead Length	2.54 mm
Contact Material(Contact Finish)	Bronze
Pitch	1.27 mm
Type	Receptacle, Female Sockets
Number of Terminals	68
Current Rating	1 A
Max Current Rating	1 A
Flammability Rating	UL94 V-0
Approvals	UL
Orientation	Right Angle
Lifecycle Status	Production (Last Updated: 1 week ago)
Color	Black
Gender	Female
Shielding	Shielded
Number of Contacts	68
Body Material	Steel
Hole Diameter	2.7686 mm
Connector Type	Connector, Receptacle
Contact Type	Signal
Number of Positions	68
Number of Rows	2
Row Spacing	2.54 mm
Housing Material	Thermoplastic
Number of Ports	1
Max Voltage Rating (AC)	30 V
Housing Color	Black
Plating	Copper, Nickel
Body Plating	Copper
PCB Mounting Orientation	Right Angle
PCB Thickness	1.57 mm
Shell Material	Steel
Manufacturer Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Sealable	No
Mating Connector Lock	Without
PCB Mount Retention	With

Distributors

pcbx

Unit Price$6.01931

Ext.Price$6.01931
